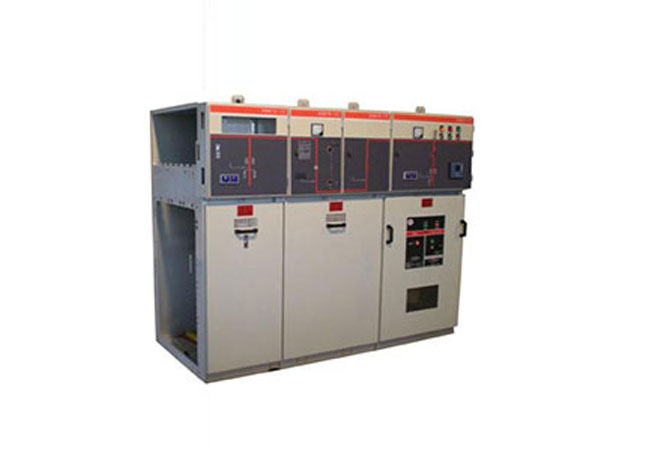

BREAKER PANELS

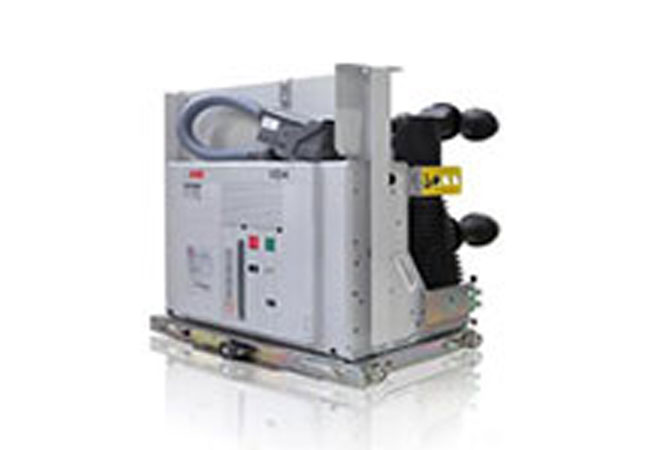

We provide indoor/outdoor Panels with reputed makes of Vacuum Circuit Breakers such as ABB, CG, Schneider etc., . These systems are compact, durable and deliver consistent performance. We offer breaker panels rated up to 33kv.

Features

  • Modular construction and horizontal draw-out type
  • Self aligning cluster contact owing to robust design
  • Fully interlocked to ensure operational safety
  • External emergency tripping arrangement
  • Totally compartmentalized and compliance to internal arc norms
  • Stored energy type spring closing mechanism
  • conformity to IS2147, IEC-62271-100, IEC-60298 and IEC-60694
  • Provision for manual and motorised operation

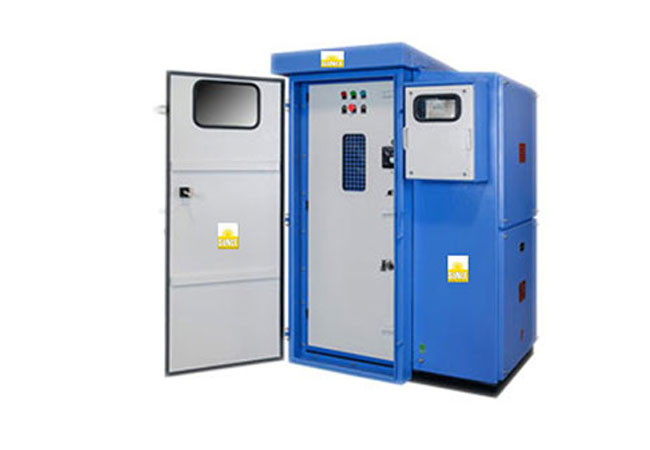

  • RING MAIN UNITS (RMUs)

    We offer 11 KV Indoor Ring Main Units, which consisting of 2 units of 11 KV, 630 Amps, triple pole, and continuously rated load breaking switches. In order to control an incoming/outgoing 11 KV feeder cable, these units come with allied bus bars and connections. These units are suitable for indoor installation and can be made extendable on each side. Quick breaking is facilitated with the help of the manual load break switches.
